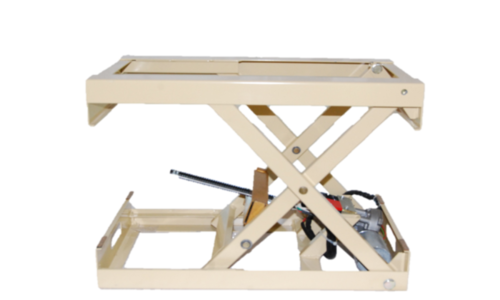

SINGLE SCISSOR LIFTS

Single Scissor Lifts have a robust design providing smooth, low noise operation. Use for various applications like hidden bars and appliances, showcases, height adjustable packaging tables, assembly lines, check-outs , etc. ..... there are no limits for creative designers, architects, cabinet-makers or anyone! Where space is limited lower from the ceiling with our ceiling lift line. Single Scissors Lifts have a significantly higher load capacity than double scissors.

There are 3 categories in our Single Scissor Lift line:

Our regular Single Scissor Lifts provide a range of sizes from 20" in length to 38", a height range from 7" to 25" and have a load capacity from 80kg(176lbs) to 150kg(220lbs) ** load capacity up to 295kg(650lbs) can be special ordered**

For applications that require a narrow fit we provide lifts with a range of sizes from 33" in length to 42" and a width of only 11", height range is from 17" to 28", and have a load capacity of 80kg(176lbs)

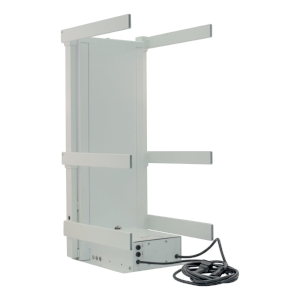

Want to use your ceiling to hide a projector or other equipment? Use our ceiling line of lifts with a range of sizes from 20" in length to 38", a height range from 9" to 24" and a load capacity of 25kg(55lbs) or 30kg(66lbs)

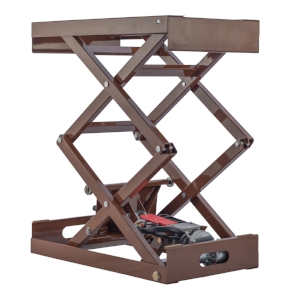

DOUBLE SCISSOR LIFTS

Our Scissors Lifts are an excellent solution due to their well-engineered technology and additional accessories like Safety Cables or Turntables. As opposed to single lifts, double scissors lifts gain a greater height with a smaller base measurement.

EDSL-A19 - Length 510mm(~20"), Width 400mm(~15"), Range 500mm(~19"), Load Capacity 80kg(176lbs)

EDSL-A35 - Length 720mm(~28"), Width 480mm(~19"), Range 900mm(~35"), Load Capacity 80kg(176lbs)

EDSL-B - Length 720mm(~28"), Width 480mm(~19"), Range 900mm(~35"), Load Capacity 120kg(264lbs)



MINI LIFTS

Mini Lifts offer very interesting opportunities for new designs and applications! Use it as a kitchen lift to raise and lower various small appliances such as coffee machines, heavy stand mixers and other small appliances in the dead spot of the working surface in the kitchen. The MINI-lifts are driven by a 24V DC electric motor, with similar electronics to our other lifts. Standard operation of the lift is by rocker-switch, but optional remote-controls (infrared or radio wave) are available on request.

EML-S - Length 370mm(~14"), Width 310mm(~12.5"), Height Contracted 220mm(~9"), Range 500mm(~20"), Load Capacity 70kg(154lbs)

EML-L - Length 370mm(~14"), Width 310mm(~12.5"), Height Contracted 720mm(~28"), Range 500mm(~20"), Load Capacity 70kg(154lbs)



OTHER SPECIALTY LIFTS

With this special lift-system you can create an adjustable Coffee, Game, Dining table or anything your creativity can imagine.

ETLA - Length 460mm(~18"), Width 390mm(~15.5"), Height Contracted 750mm(~29.5"), Range 295mm(~11.5"), Load Capacity 80kg(176lbs)


CONTACT OUR OFFICE FOR PRICING, TECHNICAL SPECS AND PRODUCT INQUIRIES
