Our products are mechanisms to raise (Lifts) or extend (Extensions) tables, desks, lecterns or anything you can imagine. These products are designed to be built-in separately or in combination. We have a wide variety of different table hardware available with either CRANK-mechanisms or GAS-CYLINDER-mechanisms and great attention was given to designing a sound guiding device free from play in the height adjustment. We also have an Electric Table Lift in our specialty lift product line for more robust projects.

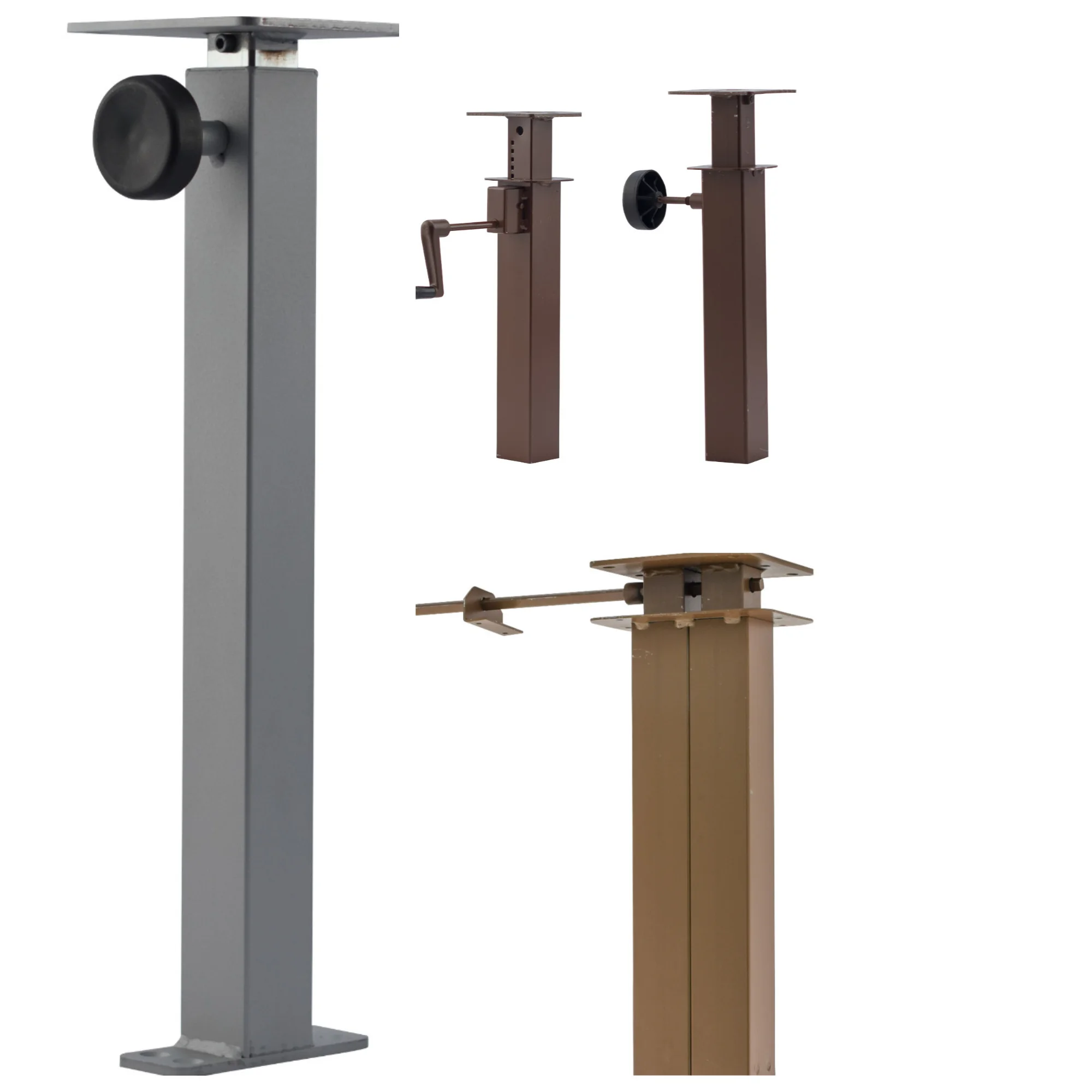

table hardware3.jpg

SINGLE PEDESTALS

Our single pedestal lifts are primarily used for pedestal tables with diameters up to 1000mm (approx. 40"). The crank version requires very few revolutions in order to achieve its maximum height range and the gas versions require just a 1/4 turn to lock and release the mechanism.

SPLC - `Crank` Retracted height 325mm(≈12`), Range 170mm(≈6.5`) load capacity 45kg(99lbs)

SPLC-LG - `Crank` Retracted height 425mm(≈16`), Range 220mm(≈8.5`), Load capacity 45kg(99lbs)

SPLG - `Gas` Retracted height 325mm(≈12`), Range 170mm(≈6.5`), Load capacity up to 60kg(132lbs). Please specify load requirements at time of order.

SPLG-LG - `Gas` Retracted height 425mm(≈16`), Range 665mm(≈9.5`), Load capacity up to 60kg(132lbs) Please specify load requirements at time of order.

SPLG-EX - `Gas` Retracted height 540mm(≈21`), Range 360mm(≈14`), Load Capacity up to 80kg(176lbs)

SPLG-EEX - `Gas` Retracted height 615mm(≈24`), Range 450mm(≈17`), Load Capacity up to 80kg(176lbs)

SPLG-DC - `Double Gas` Retracted height 360mm(≈14`), Range 180mm(≈8`), Load capacity up to 50kg(110lbs) each

SPLG-TDC - `Double Gas Triangle Base` Retracted height 360mm(≈14`), Range 180mm(≈8`), Load capacity up to 50kg(110lbs) each




DOUBLE PEDESTAL

The high-precision structure of the telescopic guiding device permits high stability. This precision and the specially designed mechanism inside, gives the lift a smooth and low noise movement even when an asymmetric load is put on the table top.

Both gas and crank lifts have the same specifications, however the gas lifts have a greater lifting capacity. Both lift styles come in 25" and 30" centers.



DPLG - Retracted height 370mm / 14.5”, Range 160mm(~6.5"), Load Capacity up to 75kg(165lbs)

DPLC - Retracted height 365mm / 14.25” or 440mm / 17”, Range 170mm (≈ 6.7") for the 365mm/ 14” axle size and approx. 215mm / 8.5” for the 17” axle size, Load capacity 50kg(110 lbs)




CENTER EXTENSIONS

All you do... is simply release the catch of the extension system and pull. The two halves of the table move to the outside synchronously and the center insert ("hidden" leaf) is elevated automatically.

CE.403.SP - Single Pedestal Tables - Width of insert (leaf): 403 mm (≈ 16"), Measurement frame: width: 495mm (≈ 19 ½") x length: 710mm (≈ 28") + leaf, Recommended table size: max. width 800mm (≈ 30") x max. length 1020mm (≈ 40") / extended 1420mm (≈ 56")

CE.403.DP - Double Pedestal Tables- Width of insert (leaf): 403 mm (≈ 16"), Measurement frame:width: 495mm (≈ 19 ½") x length: 710mm (≈ 28") + leaf, Recommended table size: max. width 800mm (≈ 30") x max. length 1020mm (≈ 40") / extended 1420mm (≈ 56")

CE.500.DP - Double Pedestal Tables - Width of insert (leaf): 500 mm (≈ 20"), Measurement frame:width: 495mm (≈ 19 ½") x length: 1030mm (≈ 40 ½") + leaf, Recommended table size: max. width 800mm (≈ 30") x max. length 1300mm (≈ 51") / extended 1800mm (≈ 71")


CONTACT OUR OFFICE FOR PRICING, TECHNICAL SPECS AND PRODUCT INQUIRIES
